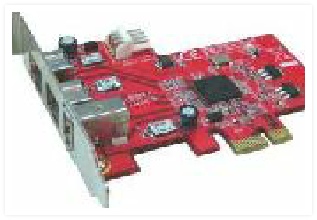

Provides Two Fully Backward Compatible, Bilingual P1394b 9-Pin Ports at up to 800 Megabits per second
One 1394a regular 6-Pin Port
On Board Power Connector to supply up to 1.5A/12V per 1394 Port
1-lane 2.5Gbps PCI Express
Low Profile PCI Form Factor
Windows and Mac Built-in drivers

PCI Express
Includes Low profile PCI and Regular size PCI Brackets
Compliant with PCI Express Specification, revision 1.0a
1-lane 2.5Gbps PCI Express host interface
Low Profile PCI Form Factor
Fully RoHS compliant
IEEE 1394 (FireWire 800 /400 /200 /100)
On Board Molex mini 4Pin Power connector to have sufficient 1394 1.5A/12V bus power from PC power supply
Supports data transfer rate up to 800 Mbps
Fully supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabite signaling rates
Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard
One External 1394a-2000 Fully Compliant Cable Port at S400, S200, S100 speed
Two External Bilingual (9-pin) Cable Ports at S800 or S400b speed
Supports Plug and Play
Supports Windows OS and Mac OS
ubCoreTM free Windows Vista Driver support
Chipset : TI
