The VSCOM USB-COM-SI-M delivers one serial port from USB connection in industrial package.
Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.
Features:
- Ports: One RS-232 port, optical isolated
- Speed: up to 921.6kbps
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power: no external power supply
- Driver: Win98, ME, Win2000, XP, Vista, Win7/8/10, Linux (Kernel 2.4 and up built-in)
- Connectors: one DB9 male
- DIN-Rail mountable, Metal Case
- Dimensions: 57x72x22 mm (WxLxH), (82x77x22 mm with DB9 connector and ears)
- Packing list: USB-COM-SI-M Adapter, USB cable 0,9m,CD, English Documentation
- Chip Set - FTDI

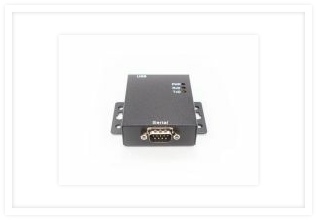

USB to RS-232 Industrial and Isolated Adapter (DB9pin Male)
Model: USB-COM-SI-M
