The VSCOM USB-COM delivers one Isolated serial port (RS-422/RS-485) from USB connection in Industrial package.
Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.
Features:
- Ports: One RS-422/485 port, Optically Isolated
- Speed: up to 921.6kbps
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422/485 signals: RS-422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND: RS-485 Data+/-, GND
- Power: USB bus powered, no external power supply
- Driver: Win98, ME, Win2000, XP, Vista, Win7/8/10, Linux (Kernel 2.4 and up built-in)
- Connectors: One DB9 male and terminal block
- DIN-Rail mountable, Metal Case
- Dimensions: 57x72x22 mm (WxLxH), (82x77x22 mm with DB9 connector and ears)
- Packing list: USB-COMi-SI-M Adapter, USB cable 0,9m,CD, English Documentation
- Chip Set - FTDI

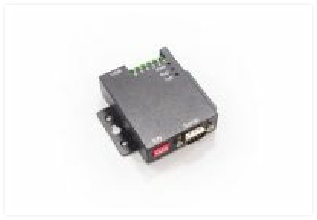

USB to RS-422/485 Industrial and Isolated Adapter
Model: USB-COMi-SI-M
