SLPE1711 PCIe Multi-I/O card use the chip of ASIX99100, It supports the maximum rate of 1.5-Mbps and it can be used for PCIe bus DB25+DB9 Serial Parallel Combo expansion, and High speed serial port of PCIe with automatic hardware rate control, Serial port network, RS485 communication, Parallel / Printer port expansion.
The PCI-Express to 2*Serial and 1*Parallel card uses the PCI-Express interface standard for expansion bus. enabling this card to be installed on any PCI-Express capable PC desktop system. By using this card add serial and parallel ports to the computer for connecting their devices. The PCI-Express to 2* Serial and 1* Parallel card use the chip of ASIX99100, It supports the maximum rate of 8Mbps and it can be used for PCIE bus RS232 serial port expansion, and high speed serial port of PCIe with automatic hardware rate control, serial port Network, RS485 communication, parallel / printer port expansion.
Features
- Chipset: ASIX AX99100
- Compliant with PCI Express 2.0 Gen 1
- Compliant with PCI Power Management 1.2
- Single-lane (X1) PCI Express End-point Controller with PHY integrated
- Supports both legacy and MSI Interrupts
- Supports ASPM Power Management
- RS232 Serial Port
- Dual UARTs, Supports RS-232
- Bi-directional speeds up to 25 Mbps per port Full Serial Modem Control
- Supports Hardware, Software Flow Control
- Supports 5, 6, 7, 8 and 9-bit Serial format
- Supports Even, Odd, None, Space and Mark parity
- Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
- Supports remote wake up and power management features
- Serial Port transceiver shutdown support
- Supports Slow IrDA mode (up to 115200bps) on all Serial Ports
- Supports multi-drop application for 9-bit mode
- Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin
- Supports DMA burst transfer
- IEEE1284 Parallel Port
- Compatible with IEEE 1284-SPP / Byte / ECP Mode
- Supports Windows 98se/ ME / NT 4. 0 / Server 2000 / XP / Vista / Server 2003 / Win 7 / Win 8 / Win 10, DOS, Linux, Mac OS

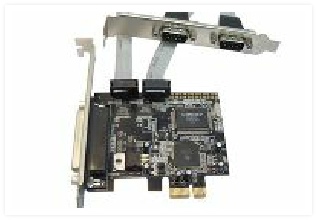

PCIe 2 Ports Serial + Parallel Card AX99100
Model: SLPE1711
