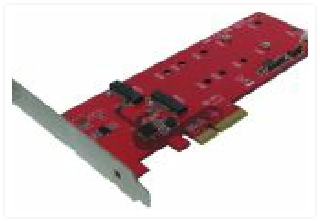

6Gbps SATA III PCIe Gen2 electrical x2 Lane and physical x4 Lane Host Adapter
2Ports M.2 NGFF type 22110-D5-B sockets on board for SATA based SSD
Supports PCIe 1.0 and PCIe 2.0 motherboard
Compliant with 10Gbps PCI Express 2.0
Fully compliant with Serial ATA specifications 3.0
Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
Supports 6Gbps, 3Gbps SATA based M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD
Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260, 2242 and 2230 SSD
Supports dual-sided SSD module 1.5mm component height on the top and bottom side
Supports Native Command Queuing (NCQ)
PCBA powered by PCIe bus 3.3V
Provides 3.3V/5A power to two M.2 devices from Motherboard PCIe slot 12V directly, or from PC power supply if 4Pin small Molex Power connector 12V connected
Low Profile PCIe Form Factor
Regular size PCIe bracket on board and Low Profile bracket included
Require an empty PCIe x4 or x8 or x16 slot in computer
64bit / 32bit Windows 10, Win8.1, Win8, Win7, Vista, 2008, 2012, Linux and Mac 10.x OS built-in AHCI inbox driver support, no additional driver required
BIOS on board to support Windows and Linux OS booting
Fully RoHS compliant
