The VSCOM USB-4485-M is an industrial-grade USB to 4-Port RS-485 Adapter designed to add four high speed Half-Duplex RS-485 communication ports to your Server or PC. Connecting to a USB port on your PC or USB hub, this USB to 4-Port RS-485 Adapter instantly adds four high speed RS-485 communication ports to your system with easy plug-and-play and hot-swapping features
Features :
- Adds four high speed half-duplex RS-485 serial ports via USB connection
- USB 2.0 interface supports high speed 480 Mbps
- Built-in 15KV ESD protection for each RS-485 port
- 600W surge protection on all RS-485 bus
- Compact palm-size SECC metal box with DIN rail brackets
- Supports two operation modes: RS-485 half-duplex echo and non-echo mode
- Installs as standard Windows® COM port
- RS-485 2-wire signals: Data+, Data-, GND
- COM port number can be changed to any available COM port number
- Auto transmit buffer control for 2-wire RS-485 half-duplex operation
- Provides failure warning when reverse connection or incorrect signals detected
- Failed RS-485 port easily detected and located
- Each RS-485 port with 2K byte receive buffer and 2K byte transmit buffer
- Requires no IRQ, DMA, I/O port
- Data rates: 300 bps to 921.6K bps. Non-standard baud rates supported.
- Biasing resistor for RS-485: 1K ohm
- Termination resistor: 120 ohm
- RS-485 Connector: two 6-pin terminal block
- RS-485 termination installed on-board, enabled or disabled by jumper
- Four dual color monitor LEDs indicating operation modes, port status, activity and error
- Supports two power output of +5VDC, 100mA, through Pin-1 (VCC) of terminal block, for external devices requiring power
- External 4-pin DIP switch for easy setting of RS-485 echo/non-echo operation modes
- Includes 12VDC power adapter with locking screw terminal power jack for reliable connection
- USB cable of 90 cm (3 ft) locked to the metal case for added security
- Two mounting holes on the bottom of metal case for optional DIN rail mounting adapter for alternative mounting onto DIN rail
- work with USB 1.1, 2.0 and 3.0 host or USB hub
- Supports Windows 8.1 (WHQL Certified), 7, Server 2008, 2003, Vista, XP, 2000, Linux, Mac OS X
Specifications:
- Serial Interface
- Input: (upstream) 1 RS-232 channel: Data+, Data-; or 1 RS-485 channel: TxD, RxD, GND Output: (downstream) 4 RS-485 channels: Data+, Data-
- Number of Ports: 4
- RS-485 ports Connectors 6-pin terminal block for upstream, 10-pin terminal block for downstream
- Serial Interface
- Input (upstream) 1 RS-232 channel: Data+, Data-; or 1 RS-485 channel: TxD, RxD, GND Output: (downstream) 4 RS-485 channels: Data+, Data-
- Number of Ports: 4 RS-485 ports
- Connectors: 6-pin terminal block for upstream, 10-pin terminal block for downstream
- Serial Line Protection
- ESD Protection: 15KV
- Optical Isolation 3000V DC on CH1 to CH4, 2-way isolation
- Serial Port Speed: Baud rate 300 bps to 230400 bps
- Serial Communication Parameters
- Data Bits: 5, 6, 7, 8
- Stop Bits 1, 1.5, 2
- Parity None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, XON/XOFF
- Serial Signals
- RS-485-2 wire
- Data- (A), Data+ (B), GND
Automatic RS-485 transmit and receive control - Driver Support OS - No driver installation required, Works in all types of operation systems
- Power Supply:
- Input: Self-powered
Power adapter of 12 VDC, 2A.terminal type with screws, Range of AC or DC input from +9 VDC to +48 VDC - Mechanical: Chassis SECC metal chassis with DIN rail bracket
- Environmental
- Operating Temperature: 0 to 55 °C (32 to 131 °F)
- Operating Humidity: 5 to 95% RH
- Storage Temperature: -20 to 75 °C (-4 to 167 °F)
- Safety Approvals: CE, CISPR PUB. 22 and FCC Part 15 Class B.

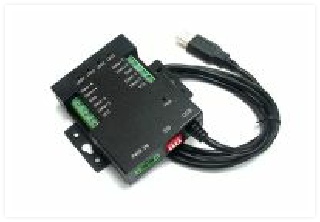

4-Port Half-Duplex RS-485 USB-to-Serial Adapter with Power Output, Error Detection, Terminal Block, Compact Metal Case with DIN Rail Brackets
Model: USB-4485-M
