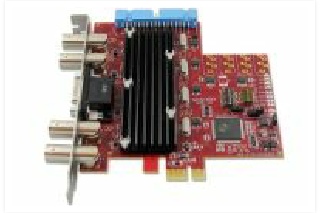

Sensoray Model 810 is a PCI Express board that simultaneously captures four channels of analog NTSC/PAL video and four channels of stereo audio. It captures raw video frames from each channel at up to full frame rate, resulting in an aggregate frame capture rate of up to 120 fps for NTSC and 100 fps for PAL. The 810's high frame capture rate, coupled with its high performance bus interface, makes it well-suited for applications that require multi-channel audio/video capturing in a compact form factor.

The board implements a single-lane (x1) PCI Express interface that enables it to be plugged into a PCI Express slot of any width. All operating power is obtained from the PCI Express bus.

Features:

• 4 composite/S-Video + 4 stereo audio input channels
• Simultaneously captures on all 4 channels
• Captures raw RGB/YUV video or frames
• VBI support
• 4 digital I/Os configurable as inputs or outputs

Specifications:

• Video
• Inputs
• Channels: 4 simultaneous, in any combination of composite or S-video
• Formats: NTSC, PAL
• Connectors: Composite: 4 BNC; signals also available on multi-function, 34-pin header S-Video: Multi-function, 34-pin header
• Impedance 75 Ohms
• Capture
• Modes: Raw digital frame or video, RGB or YUV
• Frame Rate *:
• (maximum) 120 (30x4) frames/sec for NTSC
• 100 (25x4) frames/sec for PAL
• * See Maximum Frame Rate section below for details
• Resolution: D1.NTSC: 720x480, D1.PAL: 720x576, SIF: 352x240, 2SIF: 704x240, 4SIF: 704x480, VGA: 640x480, QVGA: 320x240, QQVGA: 160x112, CIF: 352x288, QCIF: 176x144, SQCIF: 128x96, 4CIF: 704x576
• Audio
• Inputs
• Channels: 4, programmable as stereo or mono per channel
• Signal level: Line-in level, ±1.0V
• Connectors: 4 TRS StereoJack (3.5mm) ; signals also available on multi-function, 34-pin header
• Capture: Sampling Rate 32 kHz, 44.1 kHz, or 48 kHz
• Digital I/O
• Channels  4, configurable as all inputs or all outputs
• Signal Type  TTL compatible
• Connector  5-circuit spring contact terminal block; signals also available on multi-function, 34-pin header
• Other
• Bus
• Type PCI Express, single lane (x1)
• Compliance
• PCI-Express Base Specification (Revision 1.0/1.1)
• PCI-to-PCI Bridge Specification (Revision 1.2)
• Power - Nominal 6.6W, +3.3V @ 2A
• Temperature - Operating 0 to 70°C
• Mechanical Dimensions: 4.2” x 4.2” (107mm x 107mm)

Maximum Frame Rate

Sensoray bundles industry standard drivers with Model 810 for both Linux and Windows. The Linux driver is a high performance driver that makes possible simultaneous full frame rate capture at D1 resolution from all four input channels. The Windows driver, which is a closed source product of Trident Microsystems, has lower performance that may require tradeoffs between the number of active channels, resolution, and frame rate.

The following table shows the maximum frames per second that will reliably result in error-free performance on a typical host computer. In most cases these performance levels will be enhanced when using higher performance host computers.

Nominal Driver Performance

Part Numbers

4-Channel Frame Grabber PCIe with Audio Capture

Model: 810 Please see below
