The NetUSB-400i is an industrial network-enabled USB server for connecting four USB devices over the 10/100/1000Mbps Ethernet network running TCP/IP. By adding this USB to Ethernet Server to LAN, you can network-enable USB devices. It breaks the traditional five-meter USB cabling distance limitation. With this implementation, USB devices connected to NetUSB-400i can be made available to remote clients over LAN without a locally attached host PC.
Features:
- Allows four USB devices to be used and shared by client’s PC over LAN
- Enables user to remotely access and control USB devices via network connection
- Extends USB cabling distance beyond five meters
- Access and monitor USB devices over a user-friendly application interface
- Supports wide variety of USB devices
- Compatible with USB 2.0 specification and backward compatible with USB 1.1
- RJ-45 Ethernet to USB 2.0 high speed port
- LEDs of power, Ethernet and USB ports for status activity and diagnostics
- Full 500mA power provided to USB port
- Supports static and DHCP IP addresses
- Provides plug and play and hot-swap function akin to an on-board USB port
- Supports USB device safe removal
- Compatible with bulk, interrupt, isochronous type of USB devices
- Supports printing to USB printer
- Auto connect features that virtualizes and connects USB devices automatically
- Supports device request features that enables other users to request the current user to disconnect a device
- Supports auto launch feature which specifies any application that should start automatically when the device connects
- Supports printer auto connect while sharing the printer to different client’s PC’s
- Power adapter included
- Self-powered. One switching terminal power adapter of 12V, 1A provided
- Supports Windows XP up to Windows 10, Windows Server 2003 up to Windows Server 2016
Specifications:
- USB Bus
- Compliance: USB 1.1/2.0 compatible
- Speed 480Mbps, high speed USB 2.0
- Number of Ports: 4
- Ethernet Interface
- Port Type: 10/100 Base-T Fast Ethernet
- Number of Ports: 1 Connector RJ-45
- Protection
- Over current Protection: 500mA
- Network
- Protocols: TCP/IP, Static IP, DHCP
- LED Indicators: System status, Network, USB port status
- Driver Support : Windows XP to 10, Windows Server 2003 to 2016
- Power
- Input Self-powered
- Power adapter of 12VDC, 1A, terminal type
- Output 500mA downstream power per device
- Environmental
- Operating Temperature 0 to 55°C (32 to 131°F)
- Storage Temperature -20 to 75°C (-4 to 167°F)
- Operating Humidity: 5% to 95% RH
- Safety Approvals: CE, FCC

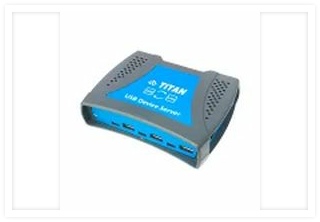

4-Port USB to Ethernet USB Device Server
Model: NETUSB-400i
