Sensoray model 812 is an 8-channel PCI-Express frame grabber that can simultaneously capture 8 channels of NTSC/PAL video, plus optional 8 channels of mono audio. Each video channel captures at full frame rate 30 fps (for NTSC) or 25 fps (for PAL), which results in an aggregate frame rate of up to 240 fps (for NTSC) or 200 fps (for PAL). The board implements a single-lane (x1) PCI-Express interface that enables it to be plugged into any width of PCI-Express slots. All operating power is supplied from the PCI-Express bus and no external power supply is needed.

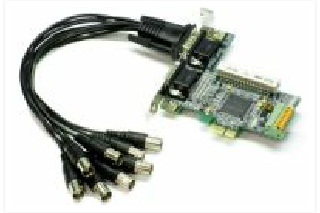

One model 812C1 cable (shown in image above) is included with model 812, which can be used to connect eight video signals or eight audio signals to the board. In applications that require both audio and video inputs, an additional 812C1 cable should be purchased separately.
Features:
- 8 channel frame grabber with 8-channel mono audio capture
- NTSC and PAL compatible
- 8 composite video inputs
- 8 mono audio inputs
- 8 general-purpose digital I/Os for camera control
- PCI Express x1 interface
Specifications:
- Video Formats: NTSC, PAL
- Video Inputs
- 8 input channels, simultaneously:
- 8 Composite video via DB15 connector, 75 Ohms; or
- 8 Composite video via a 34-pin break-in connector, 75 Ohms
- Audio Inputs
- 8 input channels: Mono, associated with the 8 separated video channels
- 8 Mono audio channels via DB15 connector, Line-in level; or
- 8 Mono audio channels via a 34-pin break-in connector Signal level: Line-in level, +/- 1.0V
- Video Capture Mode: Raw: YUYV, UYVY, RGB555, or RGB565
- Video Capture Rate
- Up to: 240 (30x8) frames/sec for NTSC
- 200 (25x8) frames/sec for PAL
- * See Maximum Channels vs. Maximum Frame Rate chart below for details
- Resolution
- Supported: D1.NTSC: 720x480, D1.PAL: 720x576 SIF: 352x240, 2SIF: 704x240, 4SIF: 704x480 VGA: 640x480, QVGA: 320x240, QQVGA: 160x120 CIF: 352x288, QCIF: 176x144, SQCIF: 128x96, 4CIF: 704x576
- Audio Sampling Rate: 8K, 16K, 32K, 44.1K, 48K Hz
- Digital I/O
- 8 inputs, or 8 outputs, or 4 inputs + 4 outputs:
- configurable inputs/outputs, break-in/out via a 34-pin connector;
- or optionally via I/O terminal blocks;
- Signal Level: TTL signals
- Bus: PCI-Express x1: Compliant of PCI-Express Base Specification (Revision 1.1/2.0)
- OS Platform Linux and Windows
- Power 825mW, +3.3V @ 0.25A
- Temperature -40 - +85 °C
- Board Size 4.1" x 3.9" (105mm x 100cm)
Maximum Channels vs. Maximum Frame Rate
Sensoray bundles chipset supplier's drivers with Model 812 for both Linux and Windows. The Linux driver is a high performance driver that makes possible simultaneous full frame rate capture at D1 resolution from all eight input channels. The Windows driver, however, has lower performance that may require tradeoffs between the number of active channels, resolution, and frame rate.
The following table shows the Maximum Channel vs. Maximum Frame Rate that will reliably result in error-free performance on a typical reasonably-new PC/Server. In most cases these performance levels will be enhanced when using higher performance host computers.
Maximum Channels vs. maximum Frame Rate Performance
Part Numbers
8-Channel Frame Grabber
Model: 812 Please see below
Driver | Active Video Channels | Resolution | Frames/Second/Channel |
NTSC | PAL |
Linux | 1 - 8 | VGA, 4SIF/4CIF, D1, or under | 30 | 25 |
Windows | 1 - 4 | VGA, 4SIF/4CIF, D1, or under | 30 | 25 |
5 - 8 | QVGA, SIF, CIF, or under | 30 | 25 |
Model | Description |
812 | 8-Channel Frame Grabber |
812C1 | Cable, DB15-to-BNC breakout for model 812 or model 810 |
