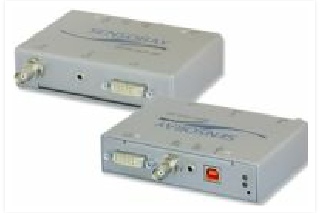

Sensoray model 2263 is a versatile USB audio/video encoder that supports a variety of analog and digital input formats. It captures HD or SD video and simultaneously sends both a compressed and an uncompressed (preview) stream to the host. Supported video inputs include DVI, component (with a component-to-DVI-I adapter, not included) and composite. If desired, audio can be captured from the analog line input, compressed, and multiplexed into a transport stream along with compressed video.
The unit is a UVC (USB Video Class) device, which means it does not require a device-specific driver and can be easily controlled using popular video APIs such as DirectShow and Video4Linux. Sensoray provides Software Development Kits (SDKs) for several operating systems to accelerate application development. Sensoray fully functional demo program illustrates model 2263's capabilities and serves as an excellent starting point for custom designs
Features:
- HD/SD video capture from DVI, component, composite sources
- Low latency uncompressed preview on host
- Video compression: H.264 HP@L3, MJPEG
- Audio compression: AAC
- USB bus powered UVC compliant
- SDK for Windows, Linux, and OS X
- Unicode text and graphic overlay
Specifications:
- Inputs
- Video, analog
- Composite (RCA connector, 75 Ω), NTSC/PAL;
- Component (DVI connector, with adapter, 75 Ω).
- Video, digital
- DVI (DVI-I connector) and VGA. Supported resolutions:
- 720x480i60,
- 720x576i50,
- 1280x720p30, 1280x720p25, 1280x720p60, 1280x720p50
- 1920x1080i60, 1920x1080i50, 1920x1080p30, 1920x1080p25, 1920x1080p24
- 1920x1200p30, 1920x1080p30, 1680x1050p30, 1600x1200p30, 1600x900p30, 1440900p30,
- 1360x768p30, 1280x1024p60, 1280x960p60, 1280x800p60, 1280x768p60, 1280x720p60,
- 1152x864p60, 1152x648p60, 1024x768p85, 800x600p85
- Audio, analog Stereo line in, 2xRCA jacks, 10 kΩ
- Video compression
- H.264 HP@L3 (MP4, AVI, transport stream)
- MJPEG Single snapshots, AVI
- Audio compression
- AAC-LC
- 16 bits/sample;
- 32 kHz, 44.1 kHz, 48 kHz sample rates
- Electrical
- Host Interface USB 2.0 High-speed
- Power Bus powered (requires a Y-cable), 2.75 W max
- Mechanical and Environmental
- Dimensions
- 4.75 x 3.25 x 1.125 inch (enclosure);
- 4.45 x 4.75 x 0.80 inch (PCB, including connectors).
- Mass
- Board – 90 g;
- In enclosure – 190 g.
- Operating temperature 0 to 70°
Part Numbers:
Audio/Video HD H.264 Encoder
Model: 2263 Please see below
Model | Description |
2263 | Audio/Video HD H.264 Encoder |
2263S | Audio/Video HD H.264 with enclosure |
