The Backup Boot Flash Kit (SO8N) is used as a Serial Flash Emulator for easy code development to reduce your time to market. Our Backup Boot Flash Module (included) can be connected to the application by 2 different methods:
- On the Main Serial flash package soldered on board by using our SO8 Test Clip (included).
- On your application 2.54mm (2X5) BBF connector (if application designed with) by using the appropriate BBF cable (included).
Your application will work automatically on the backup SPI Flash inserted in our tool is SO8N socket that can be changed easily or even updated easily for new trials with our SF100 programmer (included). Our Kit is completely transparent for the application and will offer to developer high flexibility for code trials or update. The Kit is frequently used to boot failing computers and use the Flash Utility tools to update the corrupted Bios memory.
Features :
- Dual Serial Flash emulator transparent for the application
- Compatible with most of the applications(no hardware modification needed)
- Disable automatically the Two main serial flash soldered on board (no need to remove them)
- Image download speed at 1Mbits/s to SPI flash and read at 2Mbits/s
- USB Interface
- Signal conflict protections
For Full Detailed Information Please Use This Link

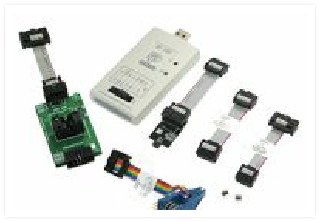

Backup Boot Flash kit-SO8N(150mil) Socket
Model: SBK-09
