Install M.2 Advanced WWAN or SSD or PCIe Module on Industrial Computer Mini PCIe slot!
Support USB & PCIe & SATA base M.2 B Key or B-M Key Modules (CDMA, GPS, LTE, SATA SSD, NVMe SSD, M.2 PCIe Host)
Features:
- Mini PCIe Adapter
- Convert USB, PCIe and SATA signals from IPC mPCIe slot to M.2 socket
- Support both mPCIe Full-Mini and Half-Mini plated-hole
- M.2 NGFF type 2280-D3-B B Key socket on board
- Support M.2 B Key and B-M Key Module, such as WWAN (CDMA, GPS, LTE) Module, PCIe Host Module, 80mm SATA SSD and NVMe PCIe x1 SSD
- Multiple plated-holes support M.2 type 2230 / 2242 / 2260 / 2280 / 3030 / 3042 module
- PCIe x1 & USB2.0 & SATA signal interface between miniPCIe and M.2 socket
- Jumper setting select PCIe x1 or SATA signals from miniPCIe to M.2 Socket
- Micro-SIM card slot on the back
- 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
- Supports operating temperature range: -40 - 80 ºC
- Fully RoHS compliant

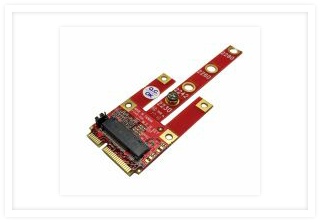

B-Key M.2 WWAN Module (USB2.0, PCIe x1, SATA signals) to miniPCIe Motherboard
Model: DT-134B
