Wide temperature and power ranges make B&B Electronics serial converters ideal for your harsh duty applications. Automatic Send Data Control, Modbus compatible. The RS-232 side has both a terminal block and a DB9 female connector; the RS-485 side has a terminal block. Requires external power supply not included.
Features
- Wide temperature ranges (-40 to 80º C)
- Modbus ASCII or RTU compatible
- Automatic Send Data Control
- DIN rail mount
- Extend distance up to 4,000 feet
- Addressing up to 32 nodes
Specifications:
- Premium model - 485DRCi - features include 10-48 VDC operation, triple isolation, 2000V input/output power supply, UL Class 1 Div 2 Approved. CE approved.
- Standard model - 485LDRC9 - features include 10-30 VDC operation, 2-way isolation, 2000V input/output, CE approved
Ordering Information:
485LDRC9 - RS-232 to RS-485 DIN Rail Mount Converter
485DRCI - RS-232 to RS-485/422 Converter with Triple Isolation

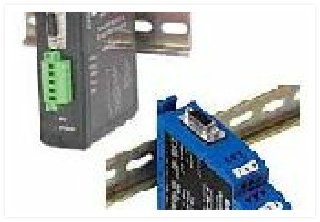

DIN rail mount isolated RS-232/RS-422/RS-485 converter
Model: Please see below
