Best & Easy Solution to install 2x Extremely High Performance Enterprise-Class PCIe 3.0 x4 NVMe or PCIe-AHCI M.2 SSD on board for Enthusiast Gaming and Workstation User!
Features:
- Dual PCIe-NVMe or PCIe-AHCI M.2 SSDs work in main board PCIe x8 bus slot
- PCI Express 3.0 x8 Lane Host adapter
- Supports PCIe Gen3 M.2 NGFF 80mm, 60mm, 42mm SSD
- 2x M.2 NGFF type 2280-D5-M M Key socket on board
- Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD
- Supports dual-sided SSD module 1.5mm component height on the top and bottom side
- Compliant with PCI Express 3.0
- Pin header on board for drive LED connection
- Support L1 Power Management Substates with CLKREQ
- Low Profile PCIe Form Factor
- Regular size PCIe bracket on board and Low Profile bracket included
- Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required
- Fully RoHS compliant

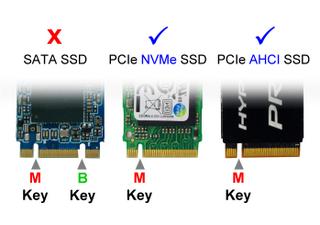

*** SATA Based M.2 SSD module can NOT work with this PCIe Based Adapter

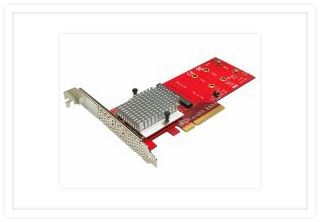

Dual PCIe NVMe M.2 SSDs Carrier Adapter
Model: DT-130
