Extend Communications Up to 9 Miles!
Any two pieces of asynchronous serial equipment can communicate at half or full duplex over two fibers at rates up to 460 kbps for RS-422/485 or 115.2 kbps for RS-232 with a pair of these converters. Fiber lines are inherently resistant to EMI/RFI and transient surges, so they are ideal for data communications near heavy electrical equipment and other electrical or radio interference.
Standards can be mixed and matched so RS-232 devices can be connected to RS-422/485 devices, replacing a converter and isolator. When working with RS-485 signals, B&B Electronics’ Automatic Send Data control eliminates the need for driver software. Serial connections are on terminal blocks; multimode fiber side has two ST connectors. Requires external power supply not included.
Features
- New! FOSTCDRi-SM extends communication up to 9 miles
- Wide temperature ranges (-40 to 80º C)
- Extend signal up to 2.5 miles
- Modbus ASCII or RTU compatible
- Automatic Send Data control
- EMI/RFI and transient Immunity
- DIN rail mount
- CE approved
Specifications:
- Premium model - FOSTCDRi - features include 10-48 VDC operation, triple isolation, 2000V input/output power supply, UL Class 1 Div 2 approval, CSA approval, CE approved.
- Standard model - FOSTCDR - features include 10-30 VDC operation, 2-way isolation, 2000V input/output, CE approved
Ordering Information:

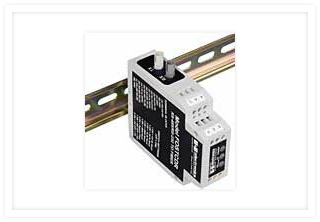

FOSTCDR - DIN Rail Serial to Multi-mode Fiber Converter, ST Connectors
FOSTCDRI - Premium DIN Rail Serial to Multi-mode Fiber Converter, ST Connectors
FOSTCDRi-SM - Premium DIN Rail Serial to Single-mode Fiber Optic Converter, SC Connectors
FOSTC - Serial/Fiber Converter
FOSTDRP - Fiber Optic Repeater
Fiber optic Converters/Repeater
Model: Please see below
