Add High Speed 1000 Mbps BASE-T Ethernet Gigabit LAN 1Port and External USB 3.0 SuperSpeed 5Gbps 3Port in Low Profile PCIe Host Adapter to support all kind of USB 3.0, USB 2.0, USB 1.1 and Gigabit networking!
Features :
- Three External USB 3.0 5Gbps Type-A Ports and one RJ-45 Gigabit LAN
- Supports PCIe 1.0 and PCIe 2.0 motherboard
- PCIe Gen2 x1 Lane Host Adapter
- Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
- Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
- All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
- Support USB3.0, USB2.0 and USB1.1 devices
- Compliant with PCI Express Specification 2.0
- Low Profile PCIe Form Factor
- Regular size PCIe bracket on board and Low Profile PCIe Bracket included
- Adapter board powered by PCIe slot
- Provides 3Ports USB 3.0 power to USB devices from Motherboard PCIe slot directly, or from PC power supply if either floppy 4Pin or SATA 15Pin Power connector connected
- Provides USB3.0 driver for 64bit and 32bit Windows 7, Vista, XP and 64bit 2008 R2
- OS built-in in-box USB3.0 driver natively in Windows 10, 8, Server 2012, Linux kernel 2.6.31 and later, no additional driver required
- Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
- RJ-45 Port offer high speed transmission over CAT 5 UTP cable
- Auto-Negotiation with Next page capability
- Supports pair swap/polarity/skew correction
- Crossover Detection & Auto-Correction
- Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support
- Supports Full Duplex flow control (IEEE 802.3x)
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports Jumbo Frame
- 10/100 or 10/100/1000 auto sensing (Auto-MDIX capable)
- Supports Gigabit LAN driver for 64bit and 32bit Windows 10, Win8, Win7, Vista, XP
- Fully RoHS compliant

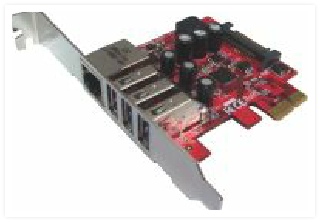

Gigabit LAN 1x + USB 3.0 3x Low Profile PCIe Combo 4Port Host Adapter
Model: NW-202
