Sensoray model 2224 is a USB 2.0 audio/video H.264 MPEG encoder with full screen text/graphics overlay and one SDI input that supports a variety of video resolutions, including 1080p/1080i, 720p and NTSC/PAL. The encoder outputs H.264 High Profile Level 4 for HD and Main Profile Level 3 for SD, multiplexed in MPEG transport stream format. The board's versatile overlay generators, integral HD/SD raw frame grabber, and live preview stream make it ideally suited for a wide range of video processing applications, including High Profile DVRs, NVRs and stream servers.
Features:
- High quality, High Profile H.264 HD/SD encoding
- Transport stream format
- HD (1080p/1080i, 720p) and SD (NTSC, PAL)
- Audio from SDI or external
- Audio level meter
- Blu-ray compatible HD/SD uncompressed frame capture
- Full screen 16-bit color graphics/text overlays with transparency
- Low latency uncompressed preview stream
- Small Form Factor
Specifications:
- Video
- Input Channels: 1 SDI HD/SD, HD-BNC connector
- Compliance: SMPTE 292M, SMPTE 344M, and SMPTE 259M, ITU-R BT.1120, and ITU-R BT.656
- Audio
- Input Channels: 1 stereo/mono
- Input Sources
- Ancillary data embedded in SDI input
- Stereo line input, ±1.0V
- Balanced XLR3 low-level compatible (requires optional mic preamp)
- H.264 Encoder
- H.264 Conformance
- HD: ISO/IEC14496-10 (H.264/AVC) High Profile Level 4.0
SD: ISO/IEC14496-10 (H.264/AVC) Main Profile Level 3.0 - Video Resolutions/Frame Rates/Bit Rates
- HD:
- 1920x1080p, 24/23.98 Hz, 2Mbps to 17Mbps
- 1920x1080i, 30/29.97/25 Hz, 2Mbps to 17Mbps
- 1280x720p, 60/59.94/50/24/23.98, 2Mbps to 17Mbps
- SD:
- 720x480i, 29.97 Hz (NTSC), 1Mbps to 10Mbps
- 720x576i, 25 Hz (PAL), 1Mbps to 10Mbps
- Audio Sampling Rate: 48 kHz
- Audio Bit Rates :64, 96, 112, 128, 160, 192, 224, 256 kbps
- Audio Conformance: MPEG-1 Audio Layer 2
- Stream Format: H.264 inside MPEG transport stream
- Overlay
- Color Resolution: 16 bits
- Hardware Regions: 8 overlappable, up to full screen size. Instantaneous updates via shadow RAM
- Video Formats (H.264 encode)
- 1920x1080p, 24/23.98 Hz
- 1920x1080i, 30/29.97/25 Hz
- 1280x720p, 60/59.94/50
- 720x480i, 29.97 Hz (NTSC)
- 720x576i, 25 Hz (PAL)
- Video Formats (live preview and snapshots)
- 1920x1080p, 30/29.97/24/23.98 Hz
- 1920x1080i, 30/29.97/25 Hz
- 1280x720p, 60/59.94/50
- 720x480i, 29.97 Hz (NTSC)
- 720x576i, 25 Hz (PAL)
- Other
- Host Interface: USB 2.0
- Power: 5W, +5V @ 1A
- Operating Temperature: 0 to 70°C

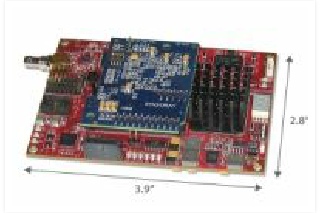

- Mechanical Dimensions: Pico-ITX: 3.9 x 2.8 inches (10 x 7.2 cm)
HD-SDI Audio/Video H.264 Encoder
Model: 2224
