Convert IDE port to support CF Card.
Plug this bridge board to standard IDE port and enable your PC system to support CompactFlash device.
This convenient interface unit allows CompactFlash modules to be used in any system that has a standard IDE 44 pin connector.
Features:
- 44 pin IDE standard Port
- Supports IDE Master and Slave mode
- Support CompactFlash cards (Type I & II) or a IBM Microdrive
- The CF card can be the primary bootable device containing the OS and application
Specifications:
- 44 pin IDE standard Port
- Supports IDE Master and Slave mode
- Support CompactFlash cards (Type I & II) or a IBM Microdrive
- IDE can NOT support hot-plug of Compact Flash
- Transparent to the operating system and does not require any drivers
- The CF card can be the primary bootable device containing the OS and application

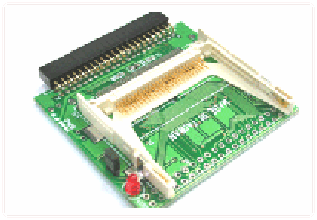

IDE44 – CF Bridge (Connector Mode)
Model: ST-307P4
