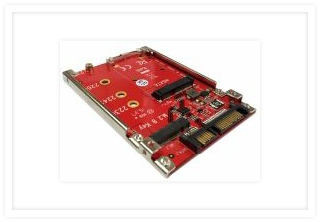

Convert mSATA or M.2 SATA SSD to standard 2.5” SATA drive Form Factor
Supports Full Size mSATA SSD or SATA based M.2 80mm, 60mm, 42mm, 30mm SSD
Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD
M.2 NGFF type 2280-D5-B B Key connector on board
Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD
Supports dual-sided M.2 SSD module 1.5mm component height on the top and bottom side
100% Compatible with 2.5” SATA drive mechanical spec
22 pin SATA (Signals and Power) male connector on board
mSATA or M.2 SATA SSD can be the primary bootable device containing the OS and application.
Includes 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
Transparent to the operating system and no driver required
Supports any OS like Windows, Mac and Linux
Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm
SSD & PCBA power from 15Pin SATA 5V input
Provides Max 3.3V/4A power to SSD
M.2 SSD active, if both M.2 & mSATA SSD installed
