Save and Protect the damage of Industrial Computer M.2 B-Key Socket!
Ideal for testing the SATA SSD and WWAN M.2 modules
Features:
- Save and Protect the damage of main board M.2 Socket
- Ideal for testing the SATA SSD and WWAN M.2 modules
- M.2 type 22110-D5-B B Key notch 75Pin 110mm PCBA Module
- M.2 NGFF type 2280-D3-B B Key socket on board
- Support M.2 B Key and B-M Key Module, such as WWAN (CDMA, GPS, LTE) Module, PCIe Host Module, 80mm SATA SSD
- Multiple plated-holes support M.2 type 2230 / 2242 / 2260 / 2280 / 3030 / 3042 module
- 2280 and 22110 plated-holes for main board screwing
- PCIe x1 & USB2.0 & SATA signal interface between M.2 B-Key socket
- Extra Nano-SIM card holder on the top side for easy testing the WWAN card
- 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
- Supports operating temperature range: -40 - 80 ºC
- Require an empty M.2 B-Key slot in computer
- RoHS Compliant

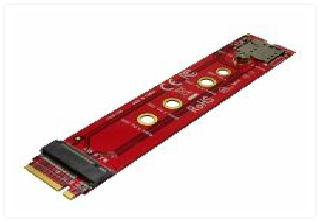

NGFF M.2 B-Key to B-Key Riser Card
Model: DT-151B
