The SLNX1000 NGFF M.2 to SATA III adapter, providing one 7+15pin connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Win 8, Win 10, Linux, Unix, and so on.
SLNX1000 adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.
Features :
- Fully compliant with SATA revision 3.1
- Fully compliant with PCI Express M.2 Specification Version 1.0 M.2
- SSD input voltage: 3.3V, input max. current: 3A
- Data transfer rate: 6Gb/s bandwidth
- Support the following form factor M.2(NGFF) SSD:
- Type 2230-D2-B-M: 30mm(L) x 22mm(W)
- Type 2242-D2-B-M: 42mm(L) x 22mm(W)
- Type 2260-D2-B-M: 60mm(L) x 22mm(W)
- Type 2280-D2-B-M: 80mm(L) x 22mm(W)
- Dimension: 98.6mm x 44.8mm

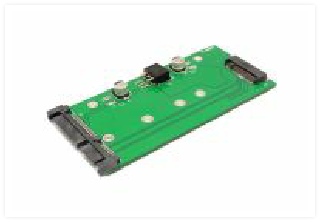

NGFF M.2 to SATA Adapter
Model: SLNX1000
