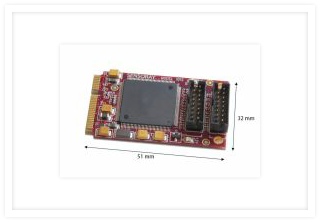

Sensoray model 1012 is a Mini PCIe board that simultaneously captures up to eight NTSC/PAL composite video and eight mono analog audio signals. Each of its eight identical channels captures uncompressed video at full frame rate and uncompressed audio at up to 48 kHz.
All operating power is supplied by the Mini PCIe bus, and the board's single-lane (x1) interface allows it to be plugged into any Mini PCIe slot. The 1012's tiny footprint and high performance make it ideally suited for surveillance and other applications in which multiple video and audio signals must be captured at the same time.
Features:
- Simultaneously captures 8 composite video + 8 analog audio
- 8 NTSC/PAL inputs captured to YUYV, UYVY, RGB555, or RGB565
- 8 audio inputs captured to PCM
- Real-time image resize and H/V flip
- Ultra-compact footprint
Specification:
- Video
- Inputs 8 composite, 75 Ohms
- Input formats NTSC, PAL
- Output formats UYVY/Y422, YUYV/YUY2, RGB555, RGB565
- Aggregate capture rate: (maximum) NTSC: 240 (30x8) frames/sec, PAL: 200 (25x8) frames/sec
- Resolution
- D1 (720x480 NTSC, 720x576 PAL)
- SIF (352x240), 2SIF (704x240), 4SIF (704x480)
- VGA (640x480), QVGA (320x240), QQVGA (160x120)
- CIF (352x288), QCIF (176x144), SQCIF (128x96), 4CIF (704x576)
- Audio
- Inputs 8 mono, line level
- Output format PCM
- Resolution 16 bits
- Sample rate 8, 16, 32, 44.1, or 48 kHz
- Environmental
- Bus PCI-Express Mini x1, compliant with PCI-Express base specification rev 1.1/2.0 Input
- power <1W (+3.3V @ 300mA)
- Operating temperature
- 0 - 70 °C (Standard/Commercial version)
- -40 °C to +80 °C (Extended/Industrial version)
- Mechanical dimensions 50.95mm x 30mm
Part Numbers
8-Channel Frame Grabber with Audio Capture
Model: 1012 Please see below
Model | Description |
1012 | 8-Channel Frame Grabber with Audio Capture |
1012-ET | 8-Channel Mini PCIe Frame Grabber, Extended Temperature |
Breakout Boards |
1012TA | 16 pin Breakin (audio in and composite video in) |
Cables |
953TAC1 | Cable, 16 conductor, for 953 breakout boards |
