Install Advanced USB base and PCIe base M.2 E Key or A-E Key Wireless Module and become a Full-Mini or Half-Mini miniPCIe Wireless Module for Industrial Computer!
Features:
- Convert USB base and PCIe base M.2 wireless module to be used in IPC mPCIe slot
- Support both mPCIe Full-Mini and Half-Mini plated-hole
- Support M.2 wireless module that USB base, PCIe base and Dual USB+PCIe mode

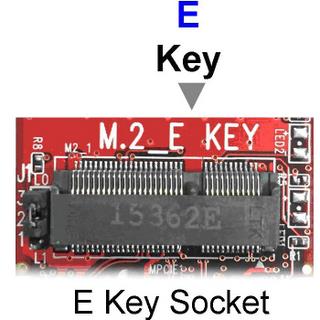

- M.2 NGFF type 2242-D3-E E Key socket on board
- Support M.2 E Key and A-E Key WiFi + Bluetooth and WiGig Wireless Modul
- Movable M.2 NGFF stand-off and multiple plated-holes support M.2 type 2230 / 2242 / 3030 / 3042 module
- PCIe & USB2.0 signal interface between miniPCIe and M.2 socket
- Special design to support M.2 PCIe Lane#0 and Lane#1 Wireless Module
- When special Lane#1 Wireless Module installed, set jumper from default L0 to L1 position
- 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
- Supports operating temperature range: -40 - 80 ºC
- RoHS Compliant

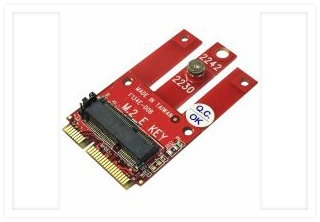

PCIe and USB Base M.2 Wireless Module to miniPCIe Motherboard
Model: DT-134E
