Convert RS-232 to RS-422 for eighty times the range. No power supply required. Allow conversion of RS-232 TD and RD signals to RS-422, allowing range to be increased from the 50 feet specified in the RS-232 standard to 4,000 feet at data speeds up to 115.2 kbps. No handshake driver control is required as the RS-422 driver and receiver are always enabled.
These port powered models require no external power supply, drawing power from the RS-232 handshake lines. If no handshake lines are available, choose Model 422PP9TB or 422LPCOR and connect a 12 VDC power supply to the terminal block.
Features
- Extend data signals up to 4,000 feet
- Change TD and RD RS-232 signals to balanced RS-422 signals
- No handshake control is required. Both the RS-422 driver and receiver are always enabled
- Baud rates up to 115.2 kbps
- Certain devices allow use of alternate power supply methods.
Ordering Information:

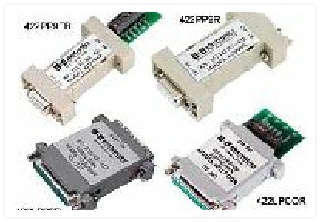

422PP9TB - Port Powered RS-232 to RS-422 Converters, DB9 Female, Terminal Block
422LP25R - Port Powered RS-232 to RS-422 Converters, DB25 Female, DB25 Female
422LPCOR - Port Powered RS-232 to RS-422 Converters, DB25 Female, Terminal Block
Port Powered RS-232 to RS-422 Converters
Model: Please see below
