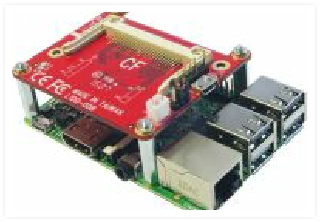

Connect Raspberry Pi USB to CF storage device
Support CompactFlashTM cards (Type I & Type II) or a IBM MicrodriveTM
Support CompactFlash spec up to Ver 6.0 Ultra DMA mode
Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
Both USB micro-B connector and USB 5Pin Pinheader on board for Pi connection
USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND
Jumper selection either power wafer of external 5V sufficient power or 5V USB bus power to CF & PCBA
On board activity LED for CF access
Includes Multi-Pi mounting accessory of standoff & nut & screw
Fully RoHS compliant
Note: Product supplies without Raspberry Pi B+
