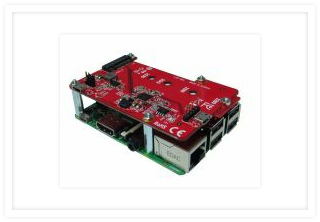

Install 80/60/42/30 mm M.2 NGFF SATA SSD to Raspberry Pi via USB
Both USB micro-B connector and USB 5Pin Pinheader connection to Raspberry Pi
USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND
On board activity LED for M.2 access
M.2 NGFF type 2280-D5-B connector on board
Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD
Supports dual-sided SSD module 1.5mm component height on the top and bottom side
Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
PCBA powered by Raspberry Pi USB Bus
Jumper selection either PWR-U external 5V sufficient power or Raspberry Pi own USB bus power to M.2 SSD
Fully RoHS compliant
