Marvell 88SE9230 SATA Raid card, Adoption PCI Express 2.0 x2 bus interface, supports up to four SATA 6Gbps interfaces and can be flexibly converted to external eSATA, can use up to three SSDs and one mechanical hard disk at the same time, supports hardware RAID in disk array 0/1/10, in addition, also supports AHCI original driver, 128/256-bit AES encryption, 32 NCQ commands per port, port multiplexing, FIS-based switching, and more.
Features:
- Chipset: Marvell 88SE9230
- Only supports 4 ports SATA3 at same time(using the jumper)
- Coexist on this controller, can achieve 2 solid state drives, plus 2 mechanical hard disk RAID 0/1 combination.
- Marvell has added HyperDuo embedded processor technology, which is designed for use in a mix of solid state drives and mechanical hard drives, automatically identifying the most frequently accessed data and files and optimizing performance.
- Mirror the data of the SSD to the mechanical hard disk to optimize data protection;
- Combine the capacity of the solid state drive and mechanical hard disk into one.
- Both modes automatically recognize the LBA range of SSDs and mechanical drives, ensuring the same user experience.
- Compliant with PCI-Express Specification V2.0 and backward Compatible with PCI-Express 1.x
- Compliant with Serial ATA Specification 3.0
- PCI Express x2 interface and compatible with PCI Express X4 ,X8 and X16 slots
- Supports SATA communication speeds of 6Gbps \ 3Gbps \ 1.5Gbps
- Support Native Command Queue (NCQ).
- Support Port Multiplier FIS based switching or command based switching
- Compatible with SATA 6G,3G and 1.5G hard drives
- Support RAID function: RAID 0, RAID 1, RAID 10, and HyperDuo
- Supports Windows XP/Vista/Server 2003/Server 2008 /Win 7/Win 8/Win 10, DOS, Linux2.6.x and above

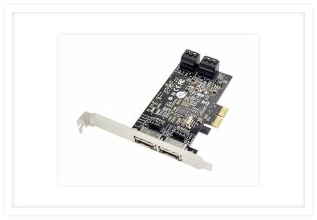

PCIe 4 Ports SATA3 2 Ports eSATA3 Raid Adapter 88SE9230
Model: SLPE1647B
