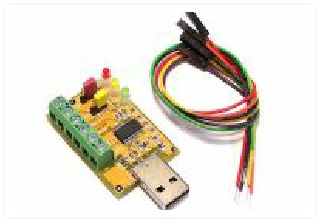

Adds a high speed TTL level serial interface via USB connection.
Provides 3.3V or 5V TTL level serial interface for most micro controller interfaces.
Provides +5 VDC or +3.3 VDC power for external devices such as micro controller, Wi-Fi, Bluetooth, Xbee, etc.
384 bytes receive data buffer.
128 bytes transmit data buffer for high speed throughput.
Signals: RxD, TxD, RTS#, CTS#.
Requires no IRQ, DMA, I/O port.
Data rates: 300 bps to 1M bps.
Provides terminal block connector for easy connection.
Monitor LEDs of TxD, RxD indicating port status.
Dimensions : 60 mm X 30 mm, with USB A type connector.
45 mm X 30 mm, without USB A type connector.
Virtual COM port drivers for Windows 8, 7, Vista, XP, 2000.
Powered by USB port. No external power adapter required.
CE, FCC approval.
Supports Windows 8, Windows 7, Vista, 2003, XP, 2000 and Linux

USB Bus
Compliance: USB 1.0/1.1 compliant, USB 2.0
compatible Speed: 12 Mbps, full-speed
USB FIFO: 128 byte transmit FIFO, 384 receive FIFO
Serial Interface:
Port Type: TTL level
Number of Ports 1
Connectors: Terminal Block
Serial Port Speed: Baudrate 300 bps to 921.6k bps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals: TTL level TxD, RxD, RTS, CTS
Driver Support: Windows 7, Vista, 2003, XP (WHQL certified) and 2000
Linux Kernel 2.4 and up built-in support
Power Supply Input Powered by USB port, No external power adapter required
