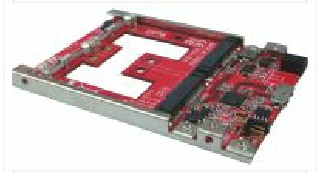

USB3.1 to 6Gbps SATA III H/W RAID Controller
Convert 2x Full Size mSATA SSD to USB3.1 7mm height 2.5” drive
Supports H/W RAID 0 Mode
Supports 2x SATA II and SATA III (6Gbps) mSATA SSD
USB 3.1 Type Micro-B upstream connector on board
Supports USB3.1, USB3.0 and USB2.0 main board
Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Supports SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
Compliant with Serial ATA Specification Revision 2.6
Supports Serial ATA transfer rate of 6.0 Gbps
Supports ATA/ATAPI Packet Command Set
Supports ATA/ATAPI LBA 48 Addressing mode
Latch type mSATA connector on board, no need the screw to retain mSATA SSD
PCBA & 2x mSATA SSD powered by USB3.1 Micro-B 5V bus
When high power mSATA SSD installed, optional DC jack power input can automatically provide mSATA the sufficient power from external 5V power adapter instead of USB bus
Includes 7mm height 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm
Fully RoHS compliant
